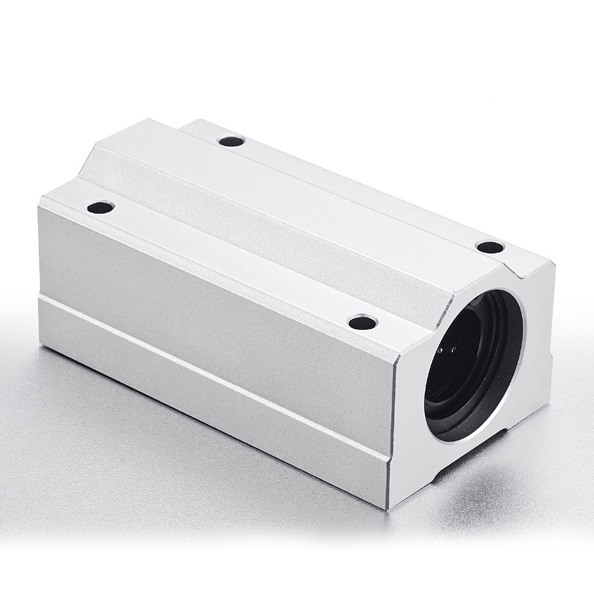

The stretched - European standard
Release time：2018/12/24

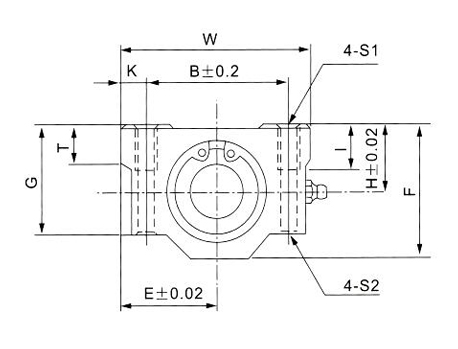

| 型號 | 軸徑 | 主要尺寸 | 安裝尺寸 | 重量 (KG) | |||||||||||
| H | E | W | L | F | G | T | B | C | K | S1 | S2 | I | |||
| SCE8L | 8 | 11 | 17 | 34 | 58 | 22 | 18 | 6 | 24 | 42 | 5 | M4 | 3.4 | 8 | 0.1 |
| SCE10L | 10 | 13 | 20 | 40 | 68 | 26 | 21 | 8 | 28 | 46 | 6 | M5 | 4.3 | 12 | 0.18 |
| SCE12L | 12 | 15 | 22 | 44 | 77 | 30 | 24.5 | 8 | 33 | 64 | 5.5 | M5 | 4.3 | 12 | 0.237 |
| SCE16L | 16 | 19 | 25 | 50 | 89 | 38.5 | 32.5 | 9 | 36 | 79 | 7 | M5 | 4.3 | 12 | 0.405 |
| SCE20L | 20 | 21 | 27 | 54 | 100 | 41 | 35 | 11 | 40 | 90 | 7 | M6 | 5.2 | 12 | 0.51 |
| SCE25L | 25 | 26 | 38 | 76 | 136 | 51.5 | 42 | 12 | 54 | 119 | 11 | M8 | 7 | 18 | 1.22 |
| SCE30L | 30 | 30 | 39 | 78 | 154 | 59.5 | 49 | 15 | 58 | 132 | 10 | M8 | 7 | 18 | 1.58 |
| SCE40L | 40 | 40 | 51 | 102 | 180 | 78 | 62 | 20 | 80 | 150 | 11 | M10 | 8.7 | 25 | 3.18 |
| SCE50L | 50 | 52 | 61 | 122 | 230 | 102 | 80 | 25 | 100 | 200 | 11 | M10 | 8.7 | 25 | 6.99 |
