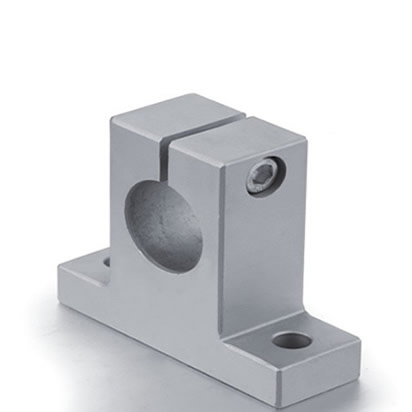

SH系列
發(fā)布時間：2018/11/24
| 型號 | 軸徑 | 尺寸(mm) | 重量 | ||||||||||
| h | A | W | H | T | E | D | C | B | S | J | (g) | ||
| SH8 | φ8 | 20 | 21 | 42 | 32.8 | 6 | 18 | 5 | 32 | 14 | φ5.5 | M4 | 24 |
| SH10 | φ10 | 20 | 21 | 42 | 32.8 | 6 | 18 | 5 | 32 | 14 | φ5.5 | M4 | 24 |
| SH12 | φ12 | 23 | 21 | 42 | 37.5 | 6 | 20 | 5 | 32 | 14 | φ5.5 | M4 | 30 |
| SH13 | φ13 | 23 | 21 | 42 | 37.5 | 6 | 20 | 5 | 32 | 14 | φ5.5 | M4 | 30 |
| SH16 | φ16 | 27 | 24 | 46 | 44 | 8 | 25 | 5 | 38 | 16 | φ5.5 | M4 | 40 |
| SH20 | φ20 | 31 | 30 | 60 | 51 | 10 | 30 | 7.5 | 45 | 20 | φ6.6 | M5 | 70 |
| SH25 | φ25 | 35 | 35 | 70 | 60 | 12 | 38 | 7 | 56 | 24 | φ6.6 | M6 | 130 |
| SH30 | φ30 | 42 | 42 | 84 | 70 | 12 | 44 | 10 | 64 | 28 | φ9 | M6 | 180 |
| SH35 | φ35 | 50 | 49 | 98 | 82 | 15 | 50 | 12 | 74 | 32 | φ11 | M8 | 270 |
| SH40 | φ40 | 60 | 57 | 114 | 96 | 15 | 60 | 12 | 90 | 36 | φ11 | M8 | 420 |
| SH50 | φ50 | 70 | 63 | 126 | 120 | 18 | 74 | 13 | 100 | 40 | φ14 | M12 | 750 |
| SH60 | φ60 | 80 | 74 | 148 | 136 | 18 | 90 | 14 | 120 | 45 | φ14 | M12 | 1100 |
